Windows Or Android All In One Touchscreen Computer 15 inch Tablets

Name: Windows Or Android All In One Touchscreen Computer 15 inch Tablets
Brand: VINCAN
Price: 1 USD

Brand Name : VINCAN

Model Number : WL-5th-GEN

Certification : CE,FCC and RoHs

Place of Origin : Mainland China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per week

Delivery Time : 2-3 days

Packaging Details : Carton box and standard export package for 15＂ tablets all in one touchscreen windows or android computer

Power dissipation : MAX 18W

Power output : DC12V/4A

MTBF : 7*24H

WiFi : 2.4G

BT : BT4.0

Active Area (mm) : 227*131

Contact Now

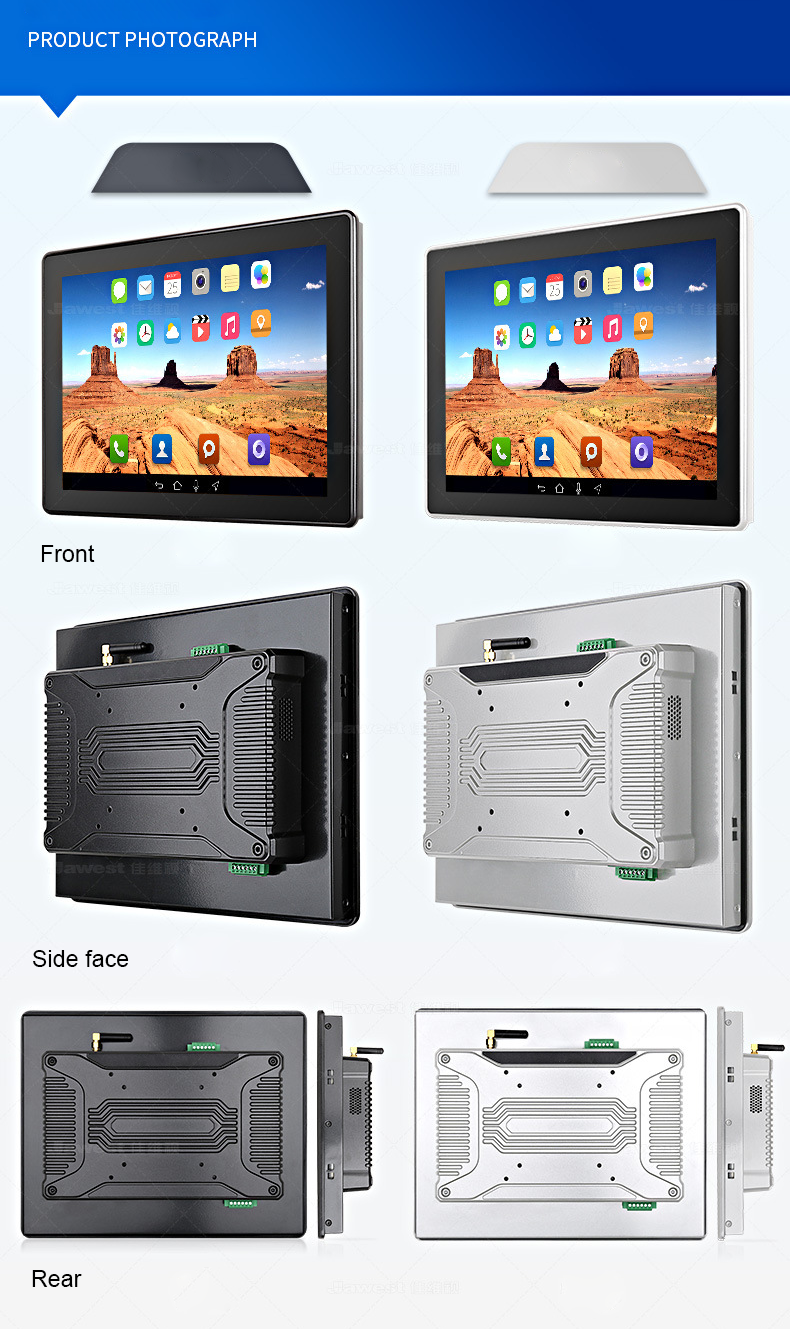

15＂ tablets all in one touchscreen windows or android computer

1. Introduction:

The fifth-generation Android all-in-one panel PC adopts an all-aluminum alloy structure, a fan-free fully enclosed

designlow power consumptionand a compact appearance.It is an industrial product designed specifically for variety

of environ-ments and can ensure long-term stable operation in harshenvironments in the
materials of the whole panel PCwe pay more attention to itsreliabilityenviron-
mental adaptability real-timescalability EMC compatibility and other perfor-
mance. The configuration adopts AllwinnerA64 Cortex-A53quad-core64-bit CPU
equipped with Android 6.0 system.The main frequency is up to1.5GHzwith a
high-definition display interfacemultiple COM interfacesand USB interfaces.It
can meet the needs of various application interfaces on site and provide multiple working performances.

It is widely used in high-end automation fields such as industrial control,militarycommunicationselectricityand networks.

Windows Or Android All In One Touchscreen Computer 15 inch Tablets

2. Datasheet :

Main parameters	Size	10.1”
	Resolution	1280*800
	View Angel	85/85/85/85 (L/R/U/D)
	Color	Chrominance :16.7M
	luminance	luminance:300cd/m2
	Contrast	600:1
	ms	30ms
	Display area	135.36(H) X216.576(V) mm
	Pixel pitch(mm)	0.1692(H) X 0.1692(V)

Touch Screen	Touch type	Capacitive touch screen
	DPI	500DPI
	Input mode	Handwritten or capacitive pen
	Surface hardness	7H
	Calibration	support

Hardware	CPU	Allwinner A64 Cortex-A53 quad-core 64-bit CPU , main frequency 1.5GHz
	GPU	Mali400MP2
	RAM	2G(DDR3)
	Memory	EMMC 8G
	OS	Android 6.0
	3G module	PCI-E standard interface for Mobile, Unicom, Telecom (optional)
	4G module	PCI-E standard interface for Mobile, Unicom, Telecom (optional)
	WiFi	2.4G
	BT	BT4.0
	GPS	optional
	MIC	optional
	RTC	Support
	Time-power-off	Support
	system upgrade	Support local SD,USB upgrade

Interface	DC port	1*DC 2.0
	HDMI	1*HDMI data output,Max support 1080P
	USB-OTG	1
	USB-HOST	2*USB2.0
	RJ45	1*10M/100M/1000M adaptive Ethernet
	SD/TF	TF data storage, up to 32G support
	Headphone socket	3.5mm standard interface
	SMIcard	SIM card interface Standard interface supports various formats (depending on 3G/4G modules)
	RS232	2*RS232
	RS485	optional
	RS422	optional
	GPIO	optional

Product reliability	Working Temperature	-10 °C to 60 °C
	Storage temperature	-20 °C to 70 °C
	Humidity	Humidity: 95% Non-Condensing
	MTBF	7*24H

Power supply	Power dissipation (MAX)	18W
	Power dissipation(Standby)
	Power input	AC 100-240V 50/60Hz has passed CCC and CE certification
	Power output	DC12V / 4A
Product name	Industrial Touch Screen Computer With Windows System

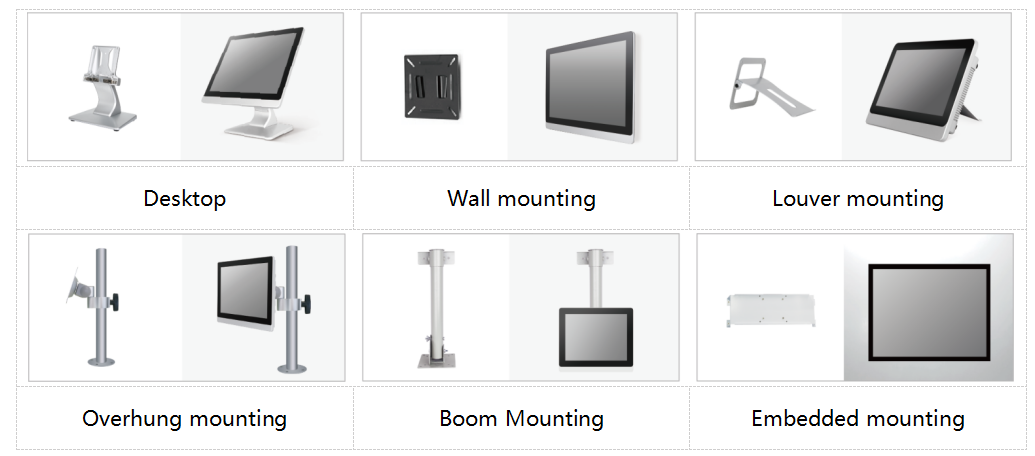

3. The installation of the 15＂ tablets all in one touchscreen windows or android computer :

Windows Or Android All In One Touchscreen Computer 15 inch Tablets

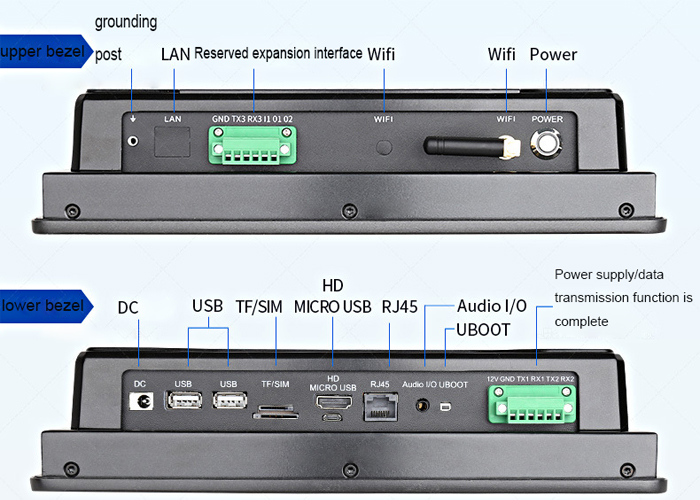

4. The interfaces of the 15＂ tablets all in one touchscreen windows or android computer

Windows Or Android All In One Touchscreen Computer 15 inch Tablets
